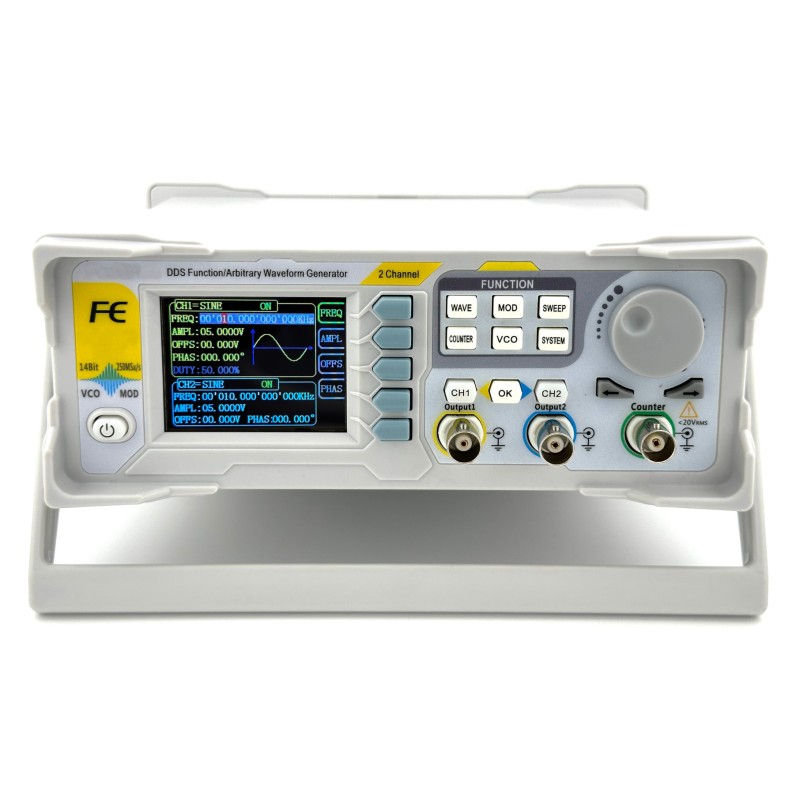

Arbitrary Waveform Generator (60MHz Dual Channel)

Experience the power and flexibility of the 60MHz Dual-Channel Arbitrary Waveform Generator—a must-have tool for electronics enthusiasts, researchers, and professionals alike. This function generator is loaded with features typically found in high-end models, yet it’s offered at an exceptional value. Whether you need a signal generator for testing, development, or educational purposes, this device delivers outstanding performance that sets it apart from the competition.

Key Features of this Arbitrary Waveform Generator:

1. Precision DDS Technology: Benefit from the accuracy of Direct Digital Synthesis (DDS) technology in your waveform generation. This function generator produces stable, low-distortion signals across all waveform types, making it an essential tool for precise signal generation and sine wave creation.

2. Extensive Waveform Capabilities: This signal generator supports a wide variety of waveforms, including sine, square, pulse, triangle, sawtooth, and many more. With 34 preset waveforms and 64 slots for custom waveforms, this arbitrary waveform generator offers unmatched versatility.

3. High Sampling Rate and Resolution: With a 250MSa/s sampling rate and 14-bit vertical resolution, this function generator ensures that every waveform—whether standard or custom—is generated with high fidelity and detail, crucial for accurate signal analysis.

4. Independent Dual-Channel Output: The device’s two channels operate independently, functioning like two separate signal sources. This dual-channel design allows for precise phase adjustments and synchronized outputs, making it ideal for advanced signal generation tasks.

5. Clear 2.4-Inch Color Display: Easily monitor and adjust your waveforms with the large color display, which shows parameters for both channels simultaneously. This user-friendly interface enhances your control over the waveform generation process.

6. Advanced Sweeping Functionality: One of the standout features of this arbitrary waveform generator is its ability to perform sweeping in pulse mode, a function rarely found in even the most advanced function generators. This is particularly useful when working with resonance circuits, as it allows you to precisely identify different harmonics within a system. This feature makes it an invaluable tool for those involved in detailed resonance circuit analysis.

7. Built-in Earthing for High Voltage Safety: This function generator comes equipped with built-in earthing on the output and within the system, which is crucial for high-voltage experiments. This feature ensures safety and stability, making it an ideal choice for complex and sensitive projects involving high voltage.

8. Perfect for Amplifiers and Switch Boards: This generator is the perfect match for use with our half-bridge amplifiers or MOSFET switch boards. The seamless integration with these components ensures that you can drive your circuits with precision and reliability, whether you're working on a professional project or a personal experiment.

9. Customizable Waveform Editing: With powerful waveform editing software, you can create and store up to 64 custom waveforms. This feature allows you to tailor the output to your specific needs, whether you're working on unique experiments or product development.

10. Wide Voltage and Frequency Range: The generator can output up to 24Vpp with a fine 1mV resolution and supports a wide frequency range, making it versatile for various applications. Additionally, the DC bias function allows you to adjust the offset voltage, which is especially useful for testing and simulation tasks.

11. High Accuracy and Stability: The generator boasts a frequency accuracy up to ±20ppm and stability within ±1ppm/3 hours, ensuring consistent and reliable performance during long-term use.

12. Comprehensive Modulation Support: This device supports multiple modulation types, including AM, FM, PM, ASK, FSK, and PSK, offering the flexibility to simulate various signal environments and conditions.

13. Burst and VCO Functions: The generator includes burst output and VCO functions, allowing you to simulate pulse trains and voltage-controlled oscillations—key for testing in communications and control systems.

14. Synchronization and Tracking: Two or more generators can be synchronized through the SYNC port, and the tracking function allows both channels to be updated simultaneously, simplifying complex setups.

15. Short-Circuit Protection: Built with durability in mind, the generator includes short-circuit protection on all outputs, capable of handling load short circuits for up to 60 seconds, ensuring longevity and safety during intensive use.

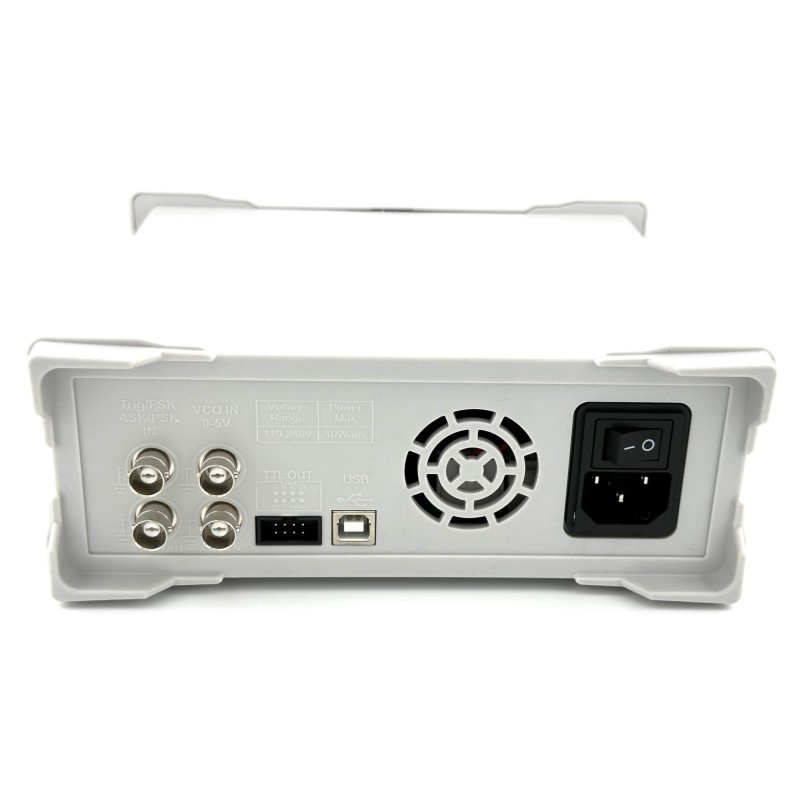

16. PC Connectivity and Customization: Control the generator directly from your computer with the included software. The open communication protocol makes this arbitrary waveform generator ideal for custom applications and further customization.

The 60MHz Dual-Channel Arbitrary Waveform Generator strikes the perfect balance of performance, features, and price. It offers the capabilities of a high-end function generator and signal generator without the hefty price tag. Whether you're generating sine waves, custom waveforms, or performing complex signal tests, this device delivers unmatched value and versatility. The added capability of pulse mode sweeping, combined with built-in earthing for high-voltage safety, makes it an essential tool for anyone working with resonance circuits, high-voltage experiments, or seeking to find harmonics in a system.

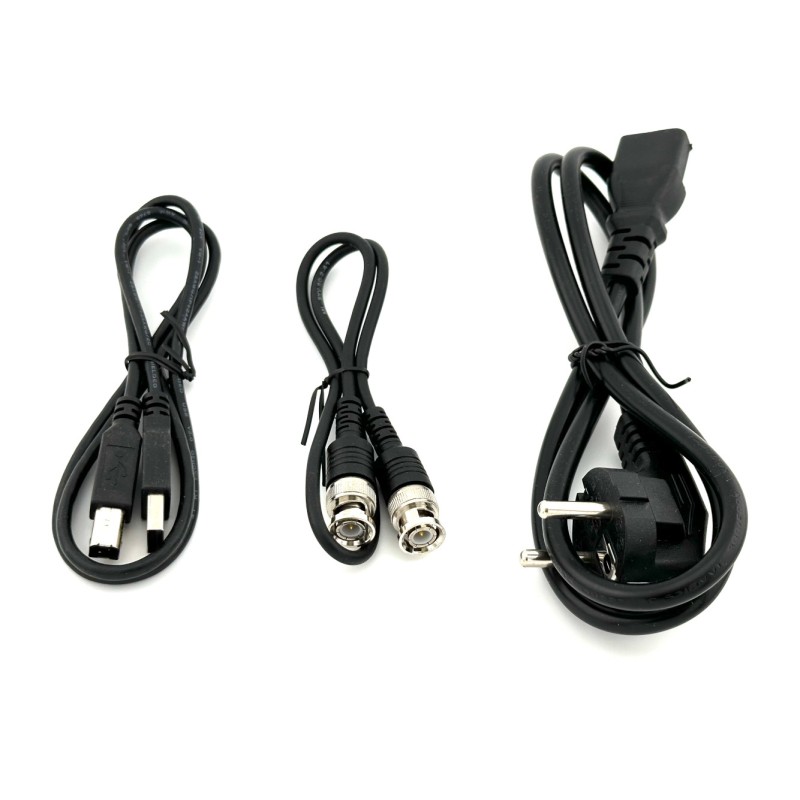

What's Included in the Package:

• 1 x 60MHz Arbitrary Waveform Generator
• 1 x USB Cable
• 1 x Power Cable (with plug type of your choice)
• 1 x BNC-BNC Cable

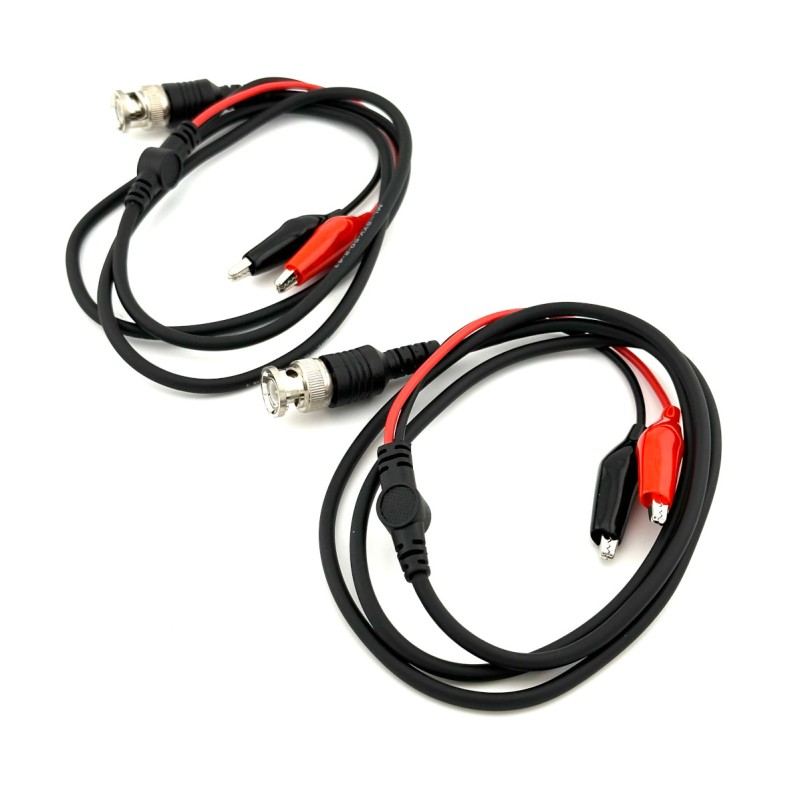

• 2 x BNC-Clip Cable

Technical Specification:
