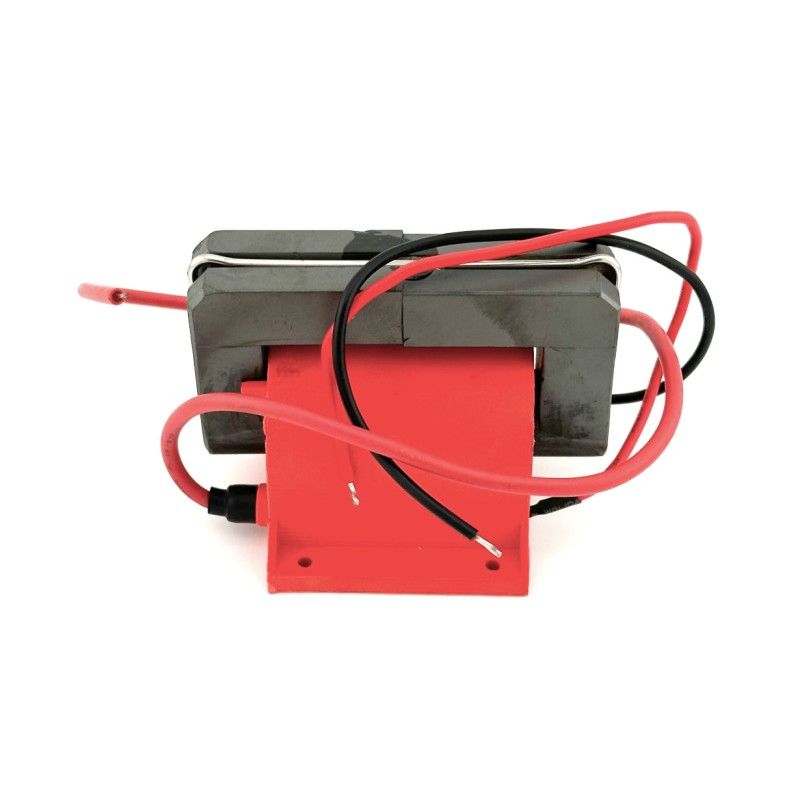

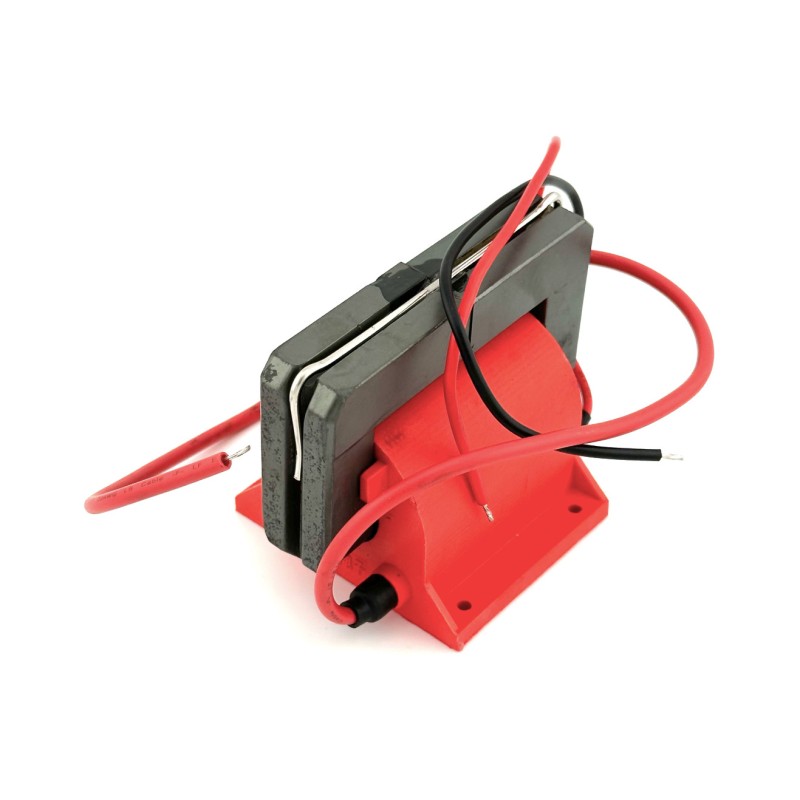

Take your high-voltage experiments to the next level with our DC Flyback Transformer. Designed to produce over 30kv of positive DC voltage, this transformer is perfect for electrostatics or pulse experiments requiring positive voltage. When paired with our Half-Bridge Amplifier boards, it can deliver extraordinarily powerful pulses at frequencies up to 100kHz. With a maximum output capacity of around 300W, this transformer is built for performance but remember to monitor for excessive heat during heavy loads to prevent damage.

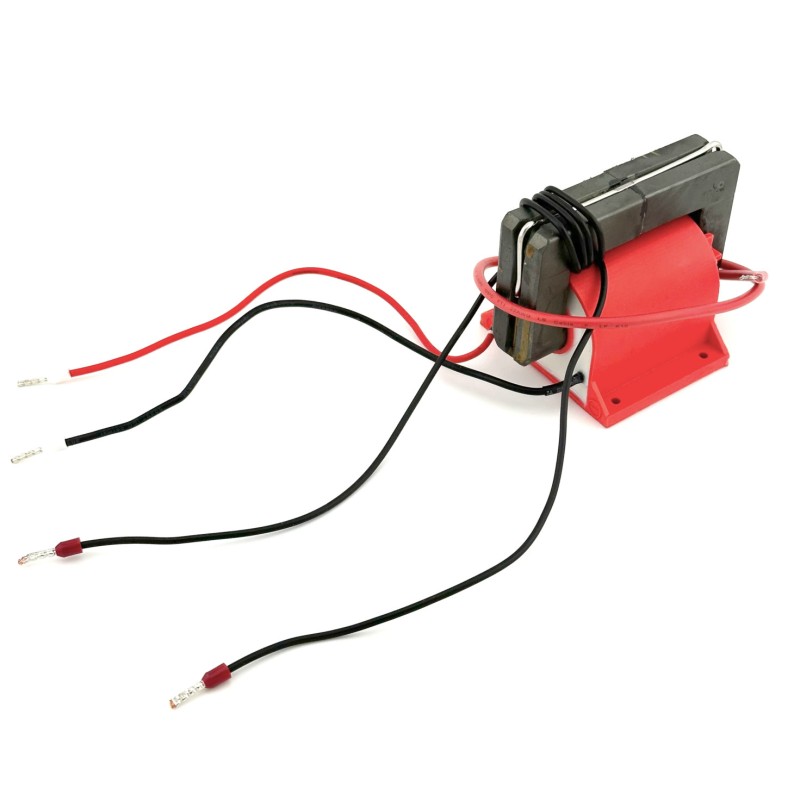

Additionally, if you purchase this transformer together with one of our Half-Bridge Amplifiers, it comes with a convenience feature – a wire prewound 4 turns around the core. This allows for easy connection to the monitor port of the Half-Bridge, enabling real-time monitoring of the magnetic field in the core under load. This feature adds a layer of insight and control to your high-voltage experimentation, making the Flyback Transformer (DC) a valuable addition to any advanced electronic setup.
A critical reminder: ensure a solid ground connection for your driving board. This transformer is potent and can easily cause harm to your equipment if it drifts too far from ground level.
Technical Specification:
| Input Voltage | 12 - 24 V |
| Frequency Range | 0 - 100 kHz |
| Max Output Voltage | 30 kV DC (positive) |
| Max Output Power | 300 W |
| Transformer Core | U-core (glued together) |
| Input Cable Length | 20 cm |
| Output Cable Length | 35 cm |
| Dimensions (LxWxH) | 75x55x57 mm |
| Technical | |
| Input voltage | 12 - 24 V |
| Max output voltage | 30 kV DC (positive) |
| Max output power | 300 W |
| Frequency range | 0 - 100 kHz |
| Transformer core | U-core (glued together) |
| Input cable length | 20 cm |
| Output cable length | 35 cm |
| Dimensions (LxWxH) | 75x55x57 mm |
