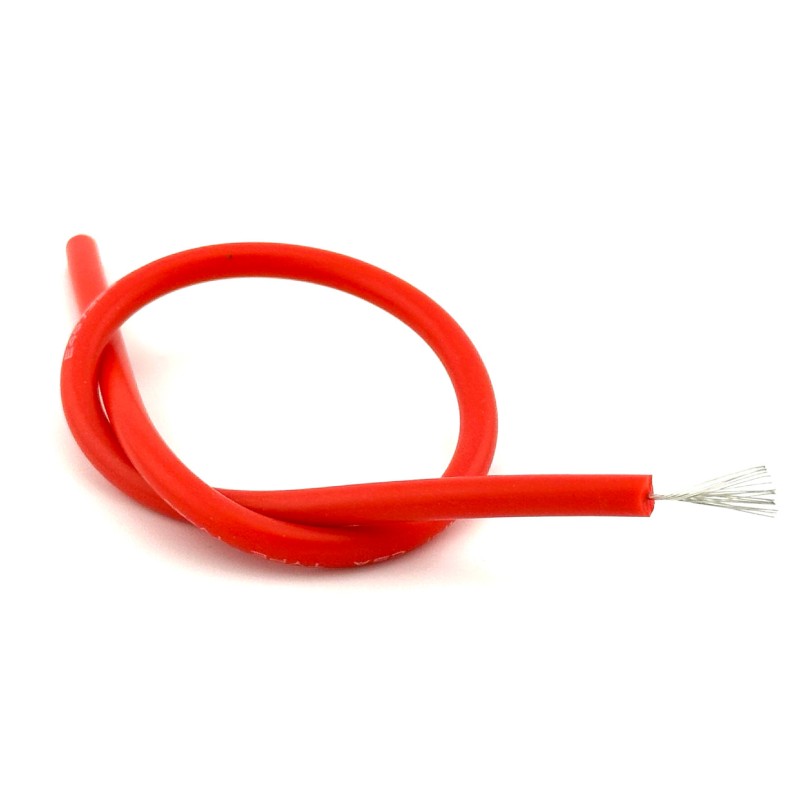

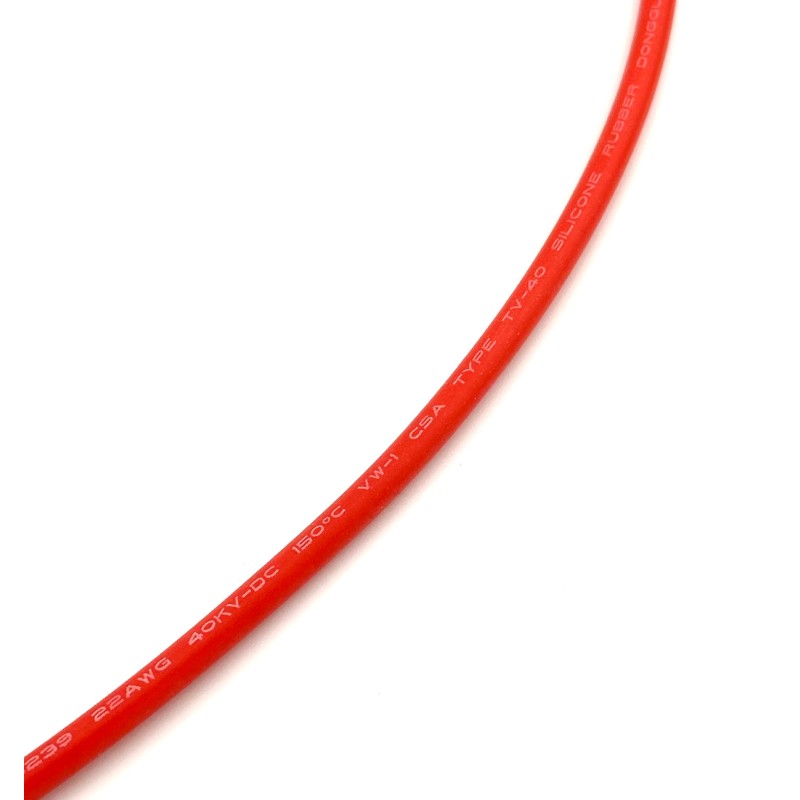

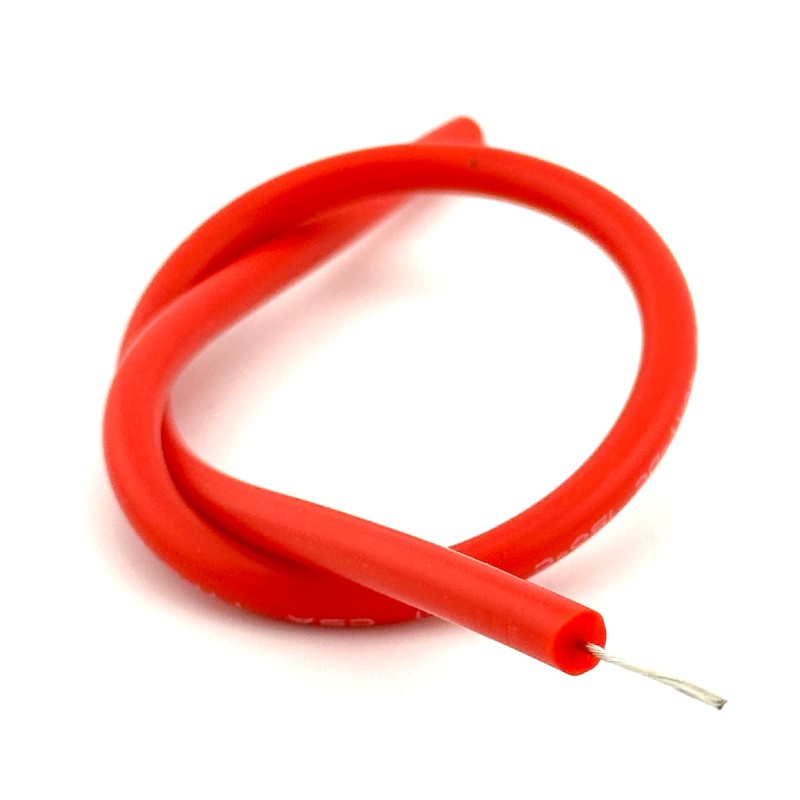

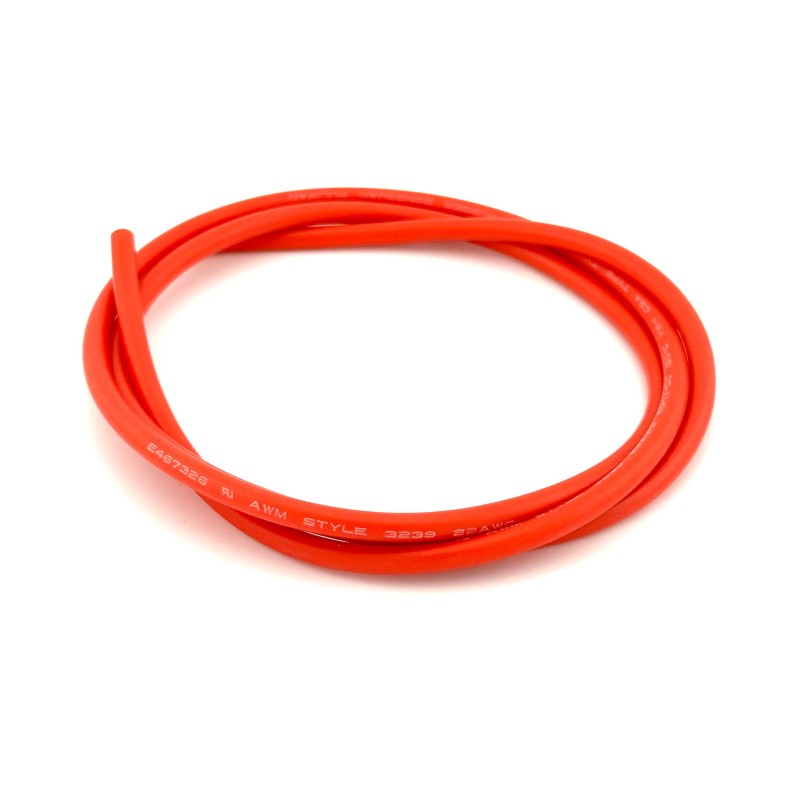

High Voltage Silicone Cable (40kV DC)

Our premium 40kV DC high-voltage silicone cable is perfect for demanding electrical applications that require durability, flexibility, and high performance. Designed with a 22 AWG conductor and a 4.76mm outer diameter, this cable features a tinned copper stranded inner conductor with a 0.64mm diameter. It is insulated with flexible soft silicon rubber and classified under UL3239, making it ideal for high voltage DC (HVDC) systems.

The cable is sold per meter, and if you select a quantity greater than 1, we will deliver the wire as a continuous piece, ensuring seamless installation for your project.

Whether you're working on high voltage DC circuits, plasma generators, or electrical testing equipment, this cable offers superior performance, reliability, and minimal energy loss in high voltage applications.

Key Features:

• Voltage Rating: 40kV DC
• Conductor Size: 22 AWG
• Inner Conductor Material: Tinned Copper Strands
• Inner Conductor Diameter: 0.64mm
• Outer Diameter: 4.76mm
• Insulation Material: Flexible Soft Silicone Rubber
• Temperature Rating: -55 to 150°C
• UL Classification: UL3239
• Sold Per Meter (Continuous length for quantities above 1)
• Applications: High Voltage DC Circuits, Plasma Generators, Electrical Testing, HVDC Power Systems
• Durable and Flexible for Easy Installation

This high voltage DC silicone cable ensures safe and efficient performance, making it a trusted choice for professionals working in high-energy environments.
