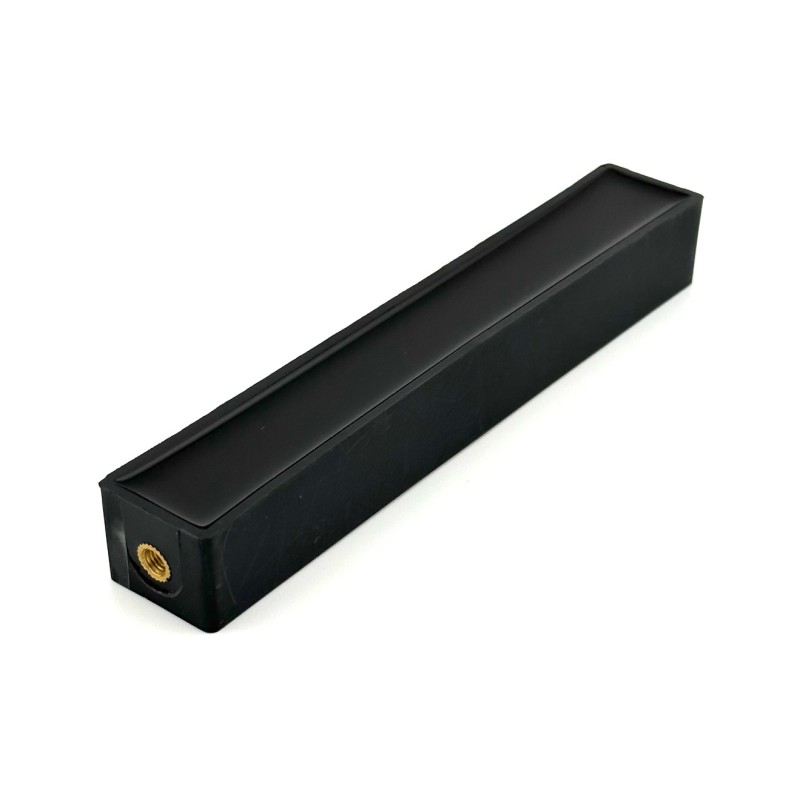

High Voltage Diode (100kV - 1A - 100ns)
- Brand: Devrima
- Product Code: HVD_100_1000_100
- Availability: In Stock
-
€90.00
Unlock the potential of our advanced high voltage diode, designed for optimal performance and reliability in high-stress environments. With a robust 100kV voltage handling capacity and a 1A current rating, this diode excels in a wide array of high voltage applications.
Its swift 100 nanosecond recovery time is perfect for high-frequency operations, making it indispensable for pulse rectifier circuits and high voltage multiplier setups where precision and speed are critical.
Ideal for specialized uses such as electrostatic precipitators, this diode’s high voltage and current ratings ensure exceptional functionality. It also serves effectively as a general-purpose high voltage rectifier, highlighting its versatility in various industrial and scientific contexts.
Whether tackling complex electronic projects or demanding industrial tasks, this high voltage diode delivers superior performance. Its combination of high voltage capability, robust current handling, and quick recovery ensures it meets the needs of advanced high voltage systems with unmatched reliability and efficiency.
Technical Specification:
| Repetitive Peak Reverse Voltage | 100 kV |
| Non-Repetitive Peak Reverse Voltage | 120 kV |
| Continuous Forward Current | 1 A |
| Reverse Recovery Time (Maximum) | 100 ns |
| Non-Repetitive Peak Forward Surge Current | 20 A |
| Forward Voltage Drop (Maximum) | 120 V |
| Maximum Reverse Current | 5.0 uA (Tc = 25°C) |
| Terminal Connections | M5 Screw |
| Dimensions (LxWxH) | 150x25x20 mm |
| Technical | |
| Repetitive Peak Reverse Voltage | 100 kV |
| Continuous Forward Current | 1 A |
| Reverse Recovery Time | 100 ns |
| Non-Repetitive Peak Forward Surge Current | 20 A |
| Forward Voltage Drop | 120 V |
| Maximum Reverse Current | 5.0 uA |
| Terminal Connections | M5 Screw |
