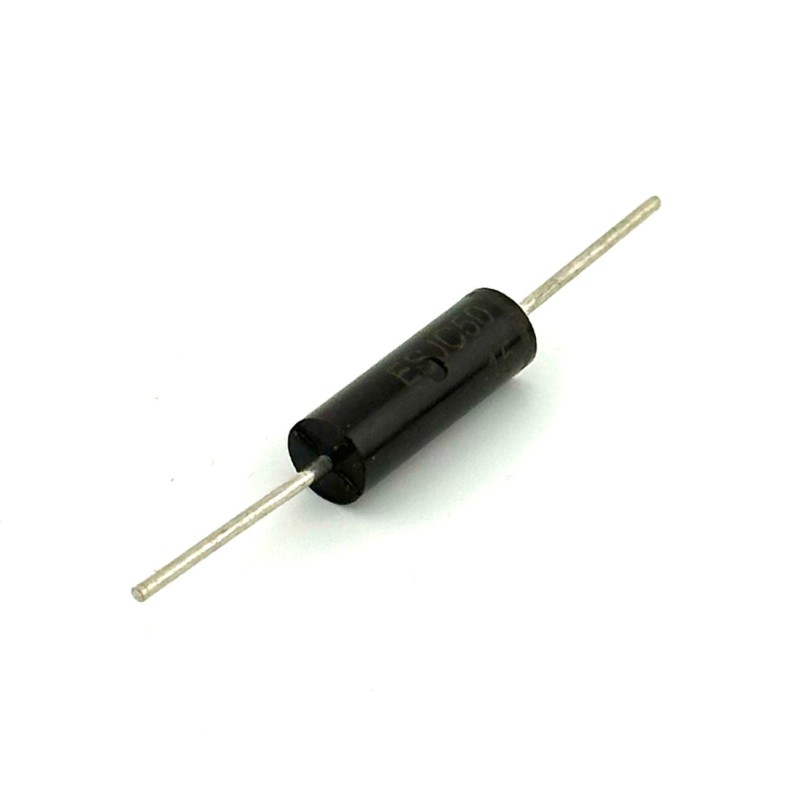

High Voltage Diode (15kV - 500mA - 50ns)
- Brand: Devrima
- Product Code: HVD_15_500_50
- Availability: 2-3 Weeks
-
€30.00
Explore the capabilities of our high voltage diode, engineered for exceptional performance in demanding applications. With a robust design emphasizing high reliability, this diode is equipped to manage large currents up to 500mA and withstand high voltages up to 15kV, making it a reliable choice for intensive electrical tasks.
One of its most remarkable features is the fast recovery time of just 50 nanoseconds, ideal for high-frequency scenarios. This quick response capability ensures efficient operation in high-frequency switching power supplies and high voltage multiplier circuits, where speed and precision are critical.
This versatile diode is not just limited to specialized applications; it's also perfectly suited for general-purpose high voltage rectification. Its adaptability extends to more complex uses such as in laser power supplies and medical equipment, where consistent, high-quality performance is essential.
Technical Specification:
| Repetitive Peak Reverse Voltage | 15 kV |
| Continuous Forward Current | 500 mA (Tc < 55°C) |
| Reverse Recovery Time (Maximum) | 50 ns |
| Non-Repetitive Peak Forward Surge Current | 20 A |
| Forward Voltage Drop (Maximum) | 18 V |
| Maximum Reverse Current | 0.5 uA (Tc = 25°C) |
| Junction Capacitance | 3.5 pF |
| Technical | |
| Repetitive Peak Reverse Voltage | 15 kV |
| Continuous Forward Current | 500 mA |
| Reverse Recovery Time | 50 ns |
| Non-Repetitive Peak Forward Surge Current | 20 A |
| Forward Voltage Drop | 18 V |
| Maximum Reverse Current | 0.5 uA |
| Junction Capacitance | 3.5 pF |
