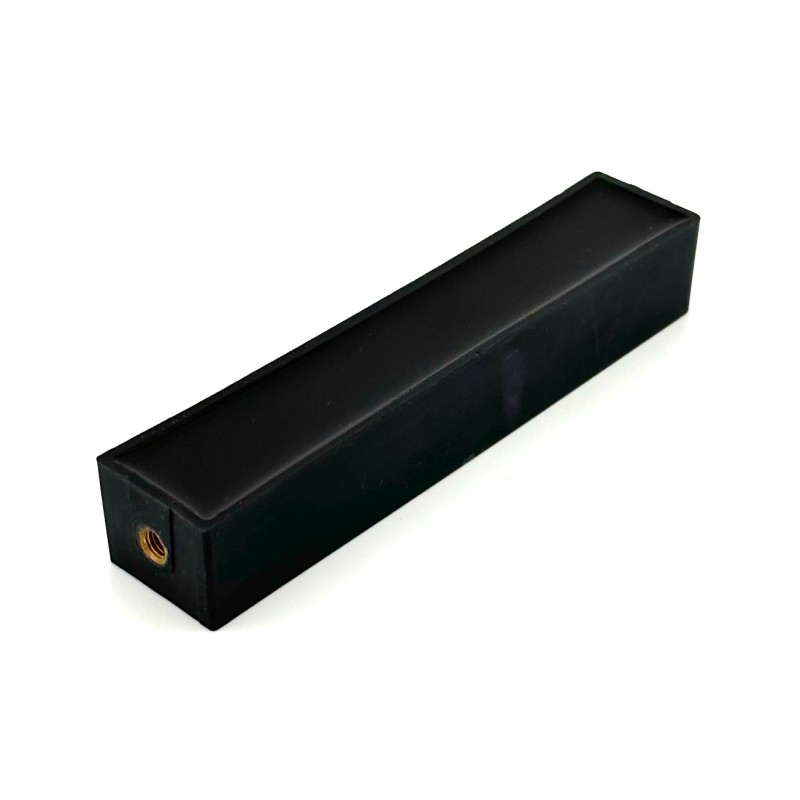

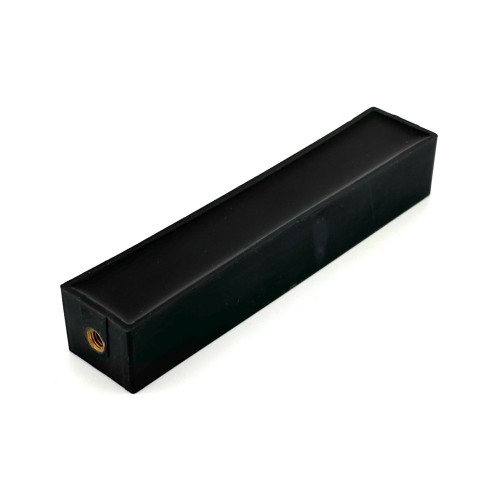

High Voltage Diode (20kV - 2A - 75ns)
- Brand: Devrima
- Product Code: HVD_20_2000_75
- Availability: In Stock
-
€40.00
Explore the capabilities of our dynamic high voltage diode, engineered for reliability and performance in high-stress environments. With its impressive 20kV voltage handling capacity and a substantial 2A current rating, this diode is an exceptional choice for a range of demanding high voltage applications.
Its rapid 75 nanosecond recovery time makes it an ideal fit for high-frequency operations, crucial in scenarios where swift response and reliability are key. This feature is particularly advantageous in pulse rectifier circuits and high voltage multiplier configurations, where speed and accuracy are paramount.
The utility of this diode extends to specialized applications such as electrostatic precipitators, where its high voltage and current ratings are essential for optimal functionality. It's also highly effective as a general-purpose high voltage rectifier, demonstrating its adaptability across various industrial and scientific settings.
Whether you're managing intricate electronic projects or handling challenging industrial requirements, this high voltage diode ensures unparalleled performance. Its combination of high voltage capacity, significant current handling, and fast recovery underpins its suitability for advanced high voltage systems, offering dependability and efficiency in the most rigorous conditions.
Technical Specification:
| Repetitive Peak Reverse Voltage | 20 kV |
| Continuous Forward Current | 2 A |
| Reverse Recovery Time (Maximum) | 75 ns |
| Non-Repetitive Peak Forward Surge Current | 40 A |
| Forward Voltage Drop (Maximum) | 25 V |
| Maximum Reverse Current | 5.0 uA (Tc = 25°C) |
| Terminal Connections | M5 Screw |
| Dimensions (LxWxH) | 120x25x20 mm |
| Technical | |
| Repetitive Peak Reverse Voltage | 20 kV |
| Continuous Forward Current | 2 A |
| Reverse Recovery Time | 75 ns |
| Non-Repetitive Peak Forward Surge Current | 40 A |
| Forward Voltage Drop | 25 V |
| Maximum Reverse Current | 5.0 uA |
| Terminal Connections | M5 Screw |
