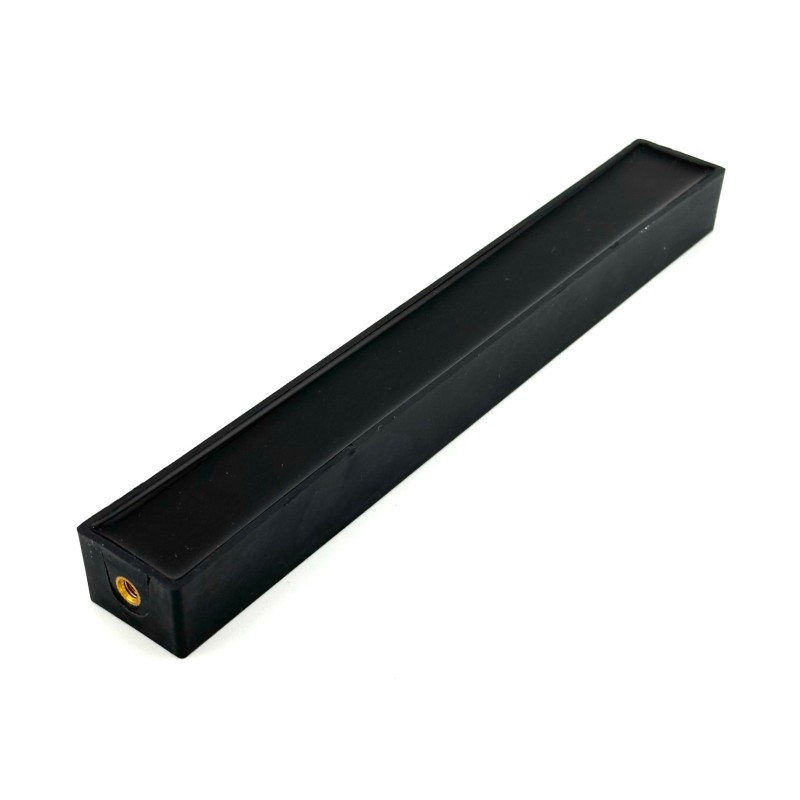

High Voltage Diode (20kV - 6A - 75ns)
- Brand: Devrima
- Product Code: HVD_20_6000_75
- Availability: 2-3 Weeks
-
€80.00
Dive into the world of high voltage applications with our robust high voltage diode, designed to handle demanding electrical tasks with ease. This diode stands out with its ability to manage a high voltage of up to 20kV, coupled with an impressive current rating of 6A, making it suitable for a wide range of heavy-duty applications.
One of the key features of this diode is its fast recovery time of 75 nanoseconds, a crucial factor for high frequency operations. This rapid recovery ensures smooth functioning in scenarios where quick response is vital, such as in pulse rectifier circuits or high voltage multiplier setups.
The versatility of this diode is remarkable. It finds its use in the efficient operation of electrostatic precipitators, where high current handling is as important as high voltage endurance. Furthermore, it serves as an excellent component for general-purpose high voltage rectification, suitable for a variety of industrial and scientific applications.
Whether used in intricate electronic projects or in heavy industrial environments, this high voltage diode provides the reliability, high current handling, and quick response needed for high-performance results. Its high voltage and current capabilities, combined with rapid recovery, make it an indispensable tool for professionals dealing with advanced high voltage systems.
Technical Specification:
| Repetitive Peak Reverse Voltage | 20 kV |
| Continuous Forward Current | 6 A |
| Reverse Recovery Time (Maximum) | 75 ns |
| Non-Repetitive Peak Forward Surge Current | 120 A |
| Forward Voltage Drop (Maximum) | 28.8 V |
| Maximum Reverse Current | 5.0 uA (Tc = 25°C) |
| Terminal Connections | M5 Screw |
| Dimensions (LxWxH) | 220x30x20 mm |
| Technical | |
| Repetitive Peak Reverse Voltage | 20 kV |
| Continuous Forward Current | 6 A |
| Reverse Recovery Time | 75 ns |
| Non-Repetitive Peak Forward Surge Current | 120 A |
| Forward Voltage Drop | 28.8 V |
| Maximum Reverse Current | 5.0 uA |
| Terminal Connections | M5 Screw |
