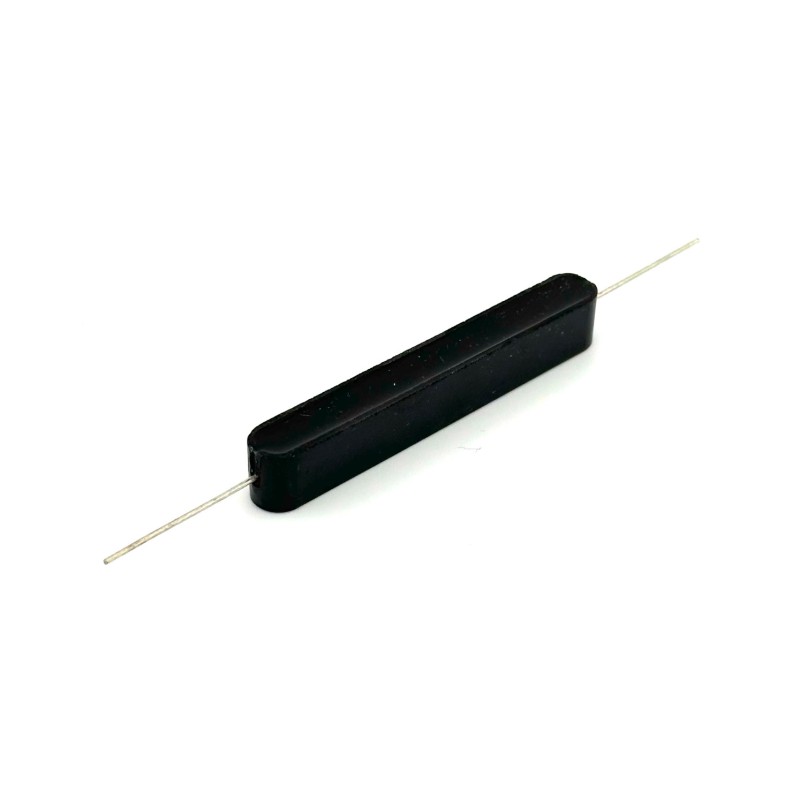

High Voltage Diode (80kV - 200mA - 100ns)
- Product Code: HVD_80_200_100
- Availability: 2-3 Weeks
-
€45.00
Experience exceptional reliability and performance with our premium High Voltage Diode, expertly engineered for demanding high-voltage applications. Specifically designed to handle voltages up to 80kV and currents reaching 200mA, this diode is perfectly suited for specialized high-voltage setups.
Boasting a rapid recovery time of only 100 nanoseconds, our diode excels in high-frequency operations, providing outstanding efficiency and responsiveness. Its quick switching capability is particularly valuable for high-voltage multiplier circuits, x-ray equipment, and similar rapid-response systems.
Ideal for use in electrostatic precipitators, this diode effectively supports high-voltage operations essential for efficient particle collection. Additionally, its robust build and consistent performance make it the perfect choice for general-purpose high-voltage rectification tasks.
From complex medical devices to industrial high-voltage equipment and sophisticated scientific instruments, this diode delivers reliable and superior performance across diverse and challenging applications. Its high-voltage rating, fast recovery characteristics, and dependable quality make it a crucial component in your high-voltage project toolkit.
Technical Specification:
| Repetitive Peak Reverse Voltage | 80 kV |
| Continuous Forward Current | 200 mA (Tc < 55°C) |
| Reverse Recovery Time (Maximum) | 100 ns |
| Non-Repetitive Peak Forward Surge Current | 6 A |
| Forward Voltage Drop (Maximum) | 96 V |
| Maximum Reverse Current | 2.0 uA (Tc = 25°C) |
| Dimensions (LxWxH) | 60x8x9 mm |
| Technical | |
| Repetitive Peak Reverse Voltage | 80 kV |
| Continuous Forward Current | 200 mA |
| Reverse Recovery Time | 100 ns |
| Non-Repetitive Peak Forward Surge Current | 6 A |
| Forward Voltage Drop | 96 V |
| Maximum Reverse Current | 2.0 uA |
