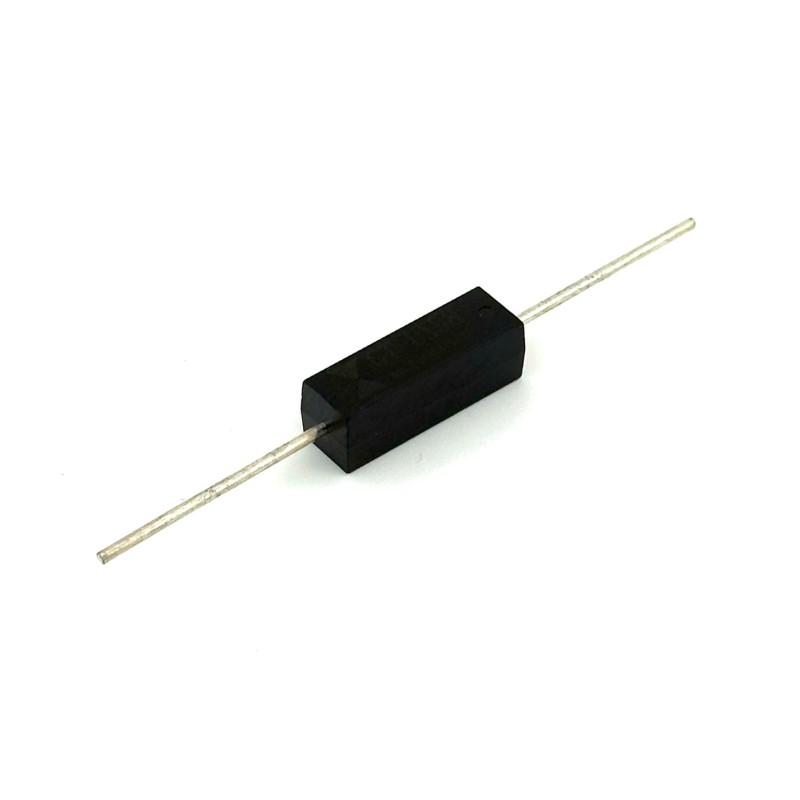

High Voltage Diode (8kV - 500mA - 40ns)
- Brand: Devrima
- Product Code: HVD_8_500_40
- Availability: In Stock
-
€25.00
Explore the robust capabilities of our high voltage diode, a critical component designed to excel in demanding electrical environments. With a design focused on high reliability, this diode is adept at handling significant currents up to 500mA and enduring high voltages up to 8kV. It's an essential tool for applications requiring durability and consistent performance under pressure.
A standout feature of this diode is its ultra-fast recovery time, clocking in at just 40 nanoseconds. This quick response is vital for high-frequency applications, making the diode a perfect fit for high frequency switching power supplies and high voltage multiplier circuits. Its rapid recovery ensures efficient operation, crucial in systems where timing and precision are key.
Beyond its technical prowess, this diode is versatile in its utility. It is not only suited for high voltage rectification in general applications but also performs exceptionally in specialized equipment like laser power supplies and medical devices. Its ability to operate reliably under high voltage and frequency conditions makes it a go-to choice for professionals in various fields.
Technical Specification:
| Repetitive Peak Reverse Voltage | 8 kV |
| Continuous Forward Current | 500 mA (Tc < 55°C) |
| Reverse Recovery Time (Maximum) | 40 ns |
| Non-Repetitive Peak Forward Surge Current | 20 A |
| Forward Voltage Drop (Maximum) | 12 V |
| Maximum Reverse Current | 0.5 uA (Tc = 25°C) |
| Junction Capacitance | 7.5 pF |
| Technical | |
| Repetitive Peak Reverse Voltage | 8 kV |
| Continuous Forward Current | 500 mA |
| Reverse Recovery Time | 40 ns |
| Non-Repetitive Peak Forward Surge Current | 20 A |
| Forward Voltage Drop | 12 V |
| Maximum Reverse Current | 0.5 uA |
| Junction Capacitance | 7.5 pF |
